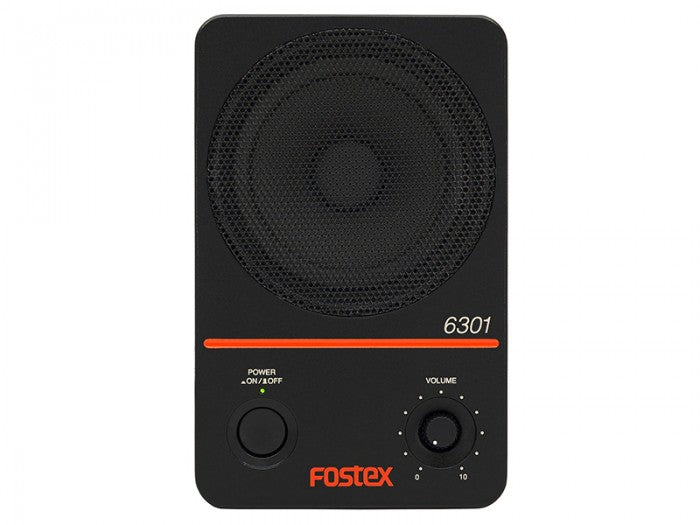

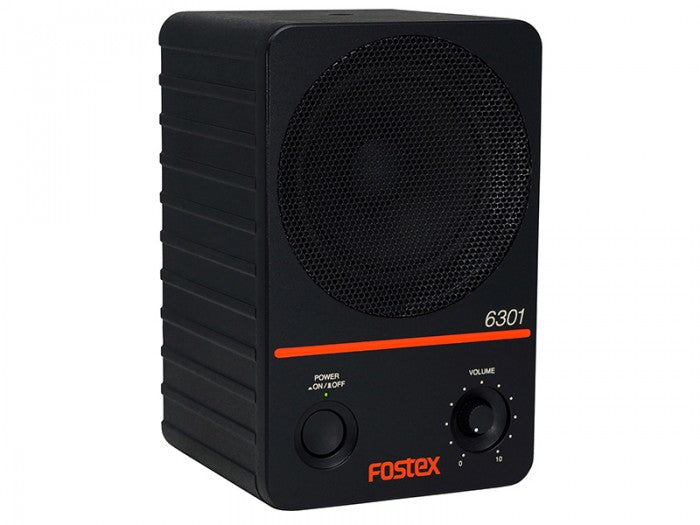

FOSTEX 6301 NE

The 6301-series have been in the market since 1982; the standard for active monitoring in broadcast and production facilities.

A new re-design for the 6301 speakers with the latest D-class power amplifier; and a new driver unit featuring an energy saving “auto stand-by” function  makes it the 6301 NE an ultra-rugged option for monitoring.

Note: Sold as a single speaker; (6301 Professional Studio Monitors are sold as a single speaker for multi-channel monitoring requirements) not in pairs.

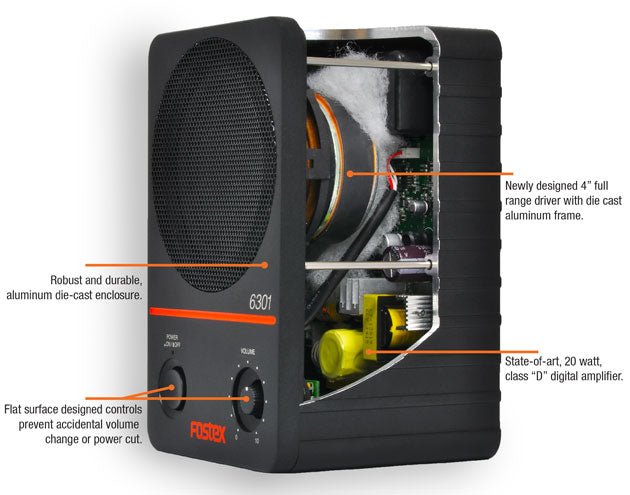

In detail

• 20W D-class power amplifier for higher output level and less power consumption with no heat sink
• Dedicated 4-inch full range driver for clear audio reproduction
• Traditional rugged enclosure of aluminium die-cast with the physically identical height and width to the current B-series
• Flat panel design to avoid inadvertent power-off or level change
• Auto Stand-by mode (compliant to ErP directive) for energy saving
• Detachable IEC type power inlet with multi-voltage power handling

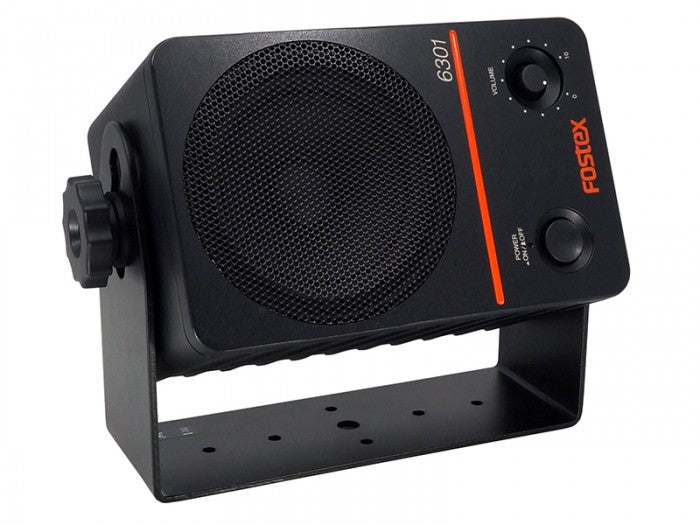

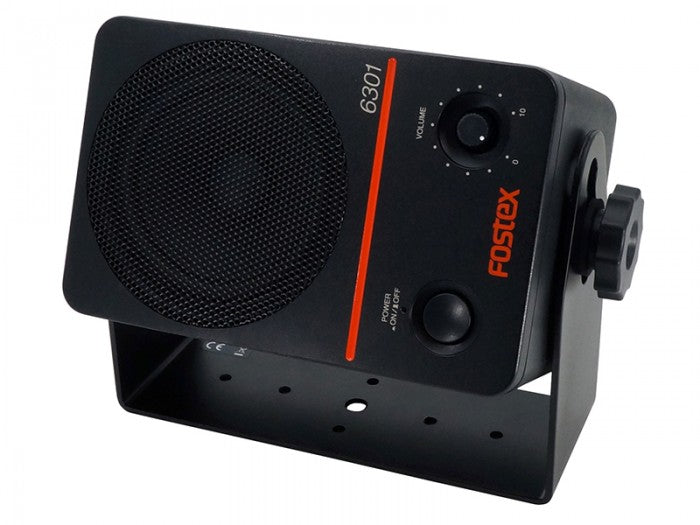

• Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments

Specifications

SPEAKER SECTION

Enclosure type:    closed
Unit:    4” full range
Frequency response:    70 Hz – 15k Hz
Sound Pressure Level:    85dB / W (1m)
Maximum SPL:    98dB

AMPLIFIER SECTION

Inputs

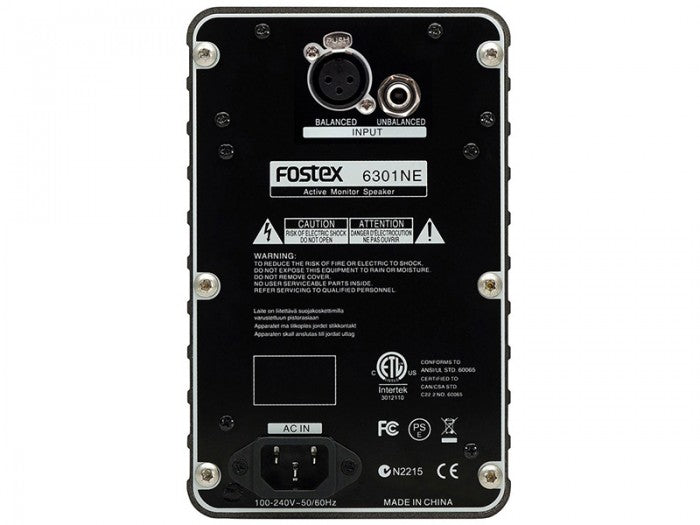

All Models:    Connector:    1/4” TS Phone (unbalanced)
    Input Impedance:    10k ohm or more
6301NE    Connector:    XLR-3-31 (electrically balanced)
    Input Impedance:    10k ohm or more

Rated output:    20W
Distortion (T.H.D.):    0.05% (1kHz / 1W output)
Residual Noise:    -70dBV or less (NB/NE/NX). -65dBV (DT)
    -65dBV or less (ND)
Input Sensitivity:    1/4” TS phone:    -14dBV (0.2Vr.m.s.)
        XLR:    +4dBu (1.2Vr.m.s.)
    XLR(Digital):    -12dBFS
Auto Stand-by:        active after approx. 25 min. of continuous input lower than the threshold level

GENERAL

Dimensions:    120 (W) x 189 (H) x 120 (D) mm
Weight:    NB/NE/ND:    2.2kgs
    NX/DT    2.3kgs
Power Requirement:    AC 100 – 240V (50/60Hz)
Power Consumption:    10W (less than 0.5W in stand-by mode)
